Model No.:201705/YJ315X-00002
Brand:CUMMINS
Warranty:3 Month
Certification:ISO
Condition:New
Rated Load:3-6t
Transmission:Hydraulic - Mechanical
Load and Unload Mode:Front Discharge
Walking Mode:Wheeled
Type:Medium-sized Loader
Packaging:box
Productivity:10000
Transportation:Ocean,Land,Air
Place of Origin:CHINA
Supply Ability:1000 Pc per day
Certificate:ISO
Port:Shanghai,Qingdao,Guangzhou
Payment Type:L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm:FOB,CFR,CIF,EXW,FCA,CPT,CIP

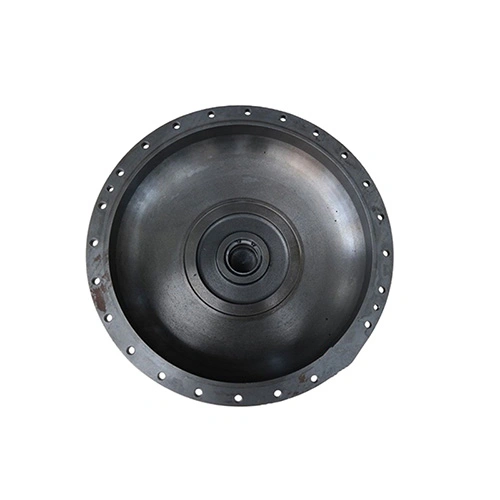

Hydraulic torque converter components Pump wheel The pump wheel is integrated with the torque converter housing, and the torque converter housing is bolted to the flywheel. Because the flywheel is connected to the crankshaft, the pump wheel always rotates with the crankshaft. The pump wheel is equipped with many relatively flat blades along the radial direction. The inner edge of the blades is equipped with a guide ring that allows the transmission oil to flow smoothly. Its structure is shown in the figure. When the Engine is running, the working fluid in the pump wheel depends on centrifugal force. The action jets out from the outer edge of the pump wheel and enters the turbine. As the engine speed increases, the centrifugal force on the working fluid increases, and the speed at which the working fluid is injected from the pump wheel also increases. turbine The turbine and the transmission input shaft are connected by splines. Like the pump wheel, the turbine is also equipped with many blades, the blades are curved, and the direction is opposite to the bending direction of the pump wheel blades. The turbine blades are placed opposite to the pump impeller blades, leaving a small gap in the middle. Guide wheel The guide wheel is located between the pump wheel and the turbine wheel, and is installed on the pipe shaft connected with the automatic transmission housing through a one-way clutch. It is also composed of many twisted blades, usually casted from aluminum alloy, and its purpose is to make the torque converter have the function of increasing torque under certain working conditions.
