Applicable Industry:Construction Works
Out-of-warranty Service:No Service
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets):None
Showroom Location (in Which Countries Are There Sample Rooms Overseas):None
Status:New
Place Of Origin:China
Types Of:Other
Exercise:Wheel Loader
Warranty Period:3 Months
Unique Selling Point:High Operating Efficiency
Power (Watts):Other
Mechanical Test Report:Not Available
Video Factory Inspection:Not Available
Marketing Type:Ordinary Product
Core Component Warranty Period:1 Year
Core Components:Other, Pump
Condition:New
Place Of Origin:China
Warranty:3 months
Quality:High Guarantee
Brand Name:Original
Weight:5kg
MOQ:1Pcs
Application:Wheel Loader Spare Parts
Part Name:Clutch master pump
Part No:4190000037
Packaging:box
Productivity:5000
Transportation:Ocean,Land,Air,Express
Place of Origin:China
Port:Qingdao,Tianjin,Shanghai
Payment Type:L/C,T/T,D/P,D/A,Paypal,Trade Assurance
Incoterm:FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DEQ,DDP,DDU,DAF,DES,Express Delivery
Product Description

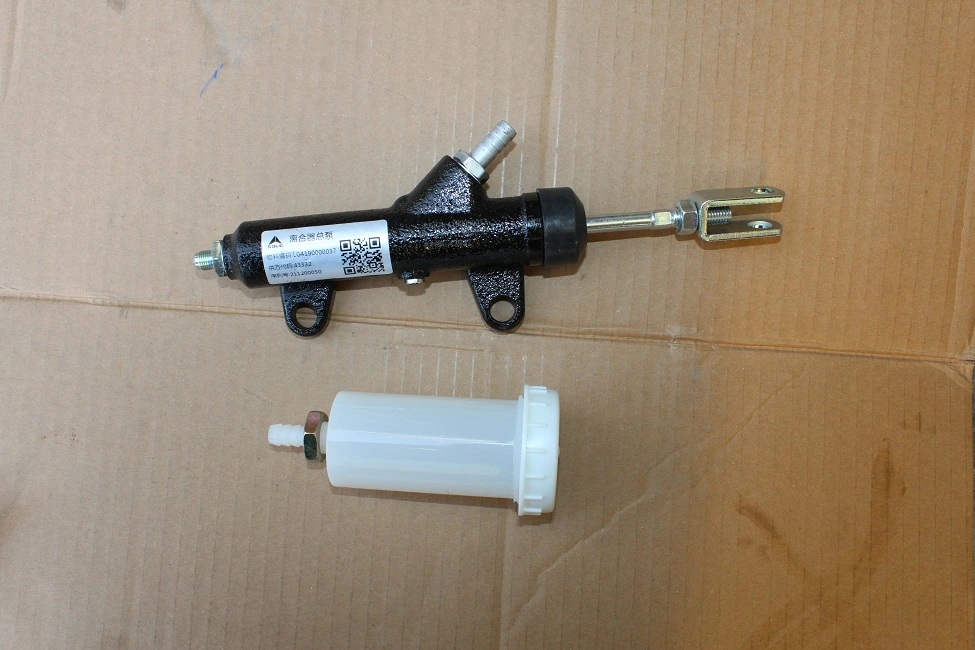

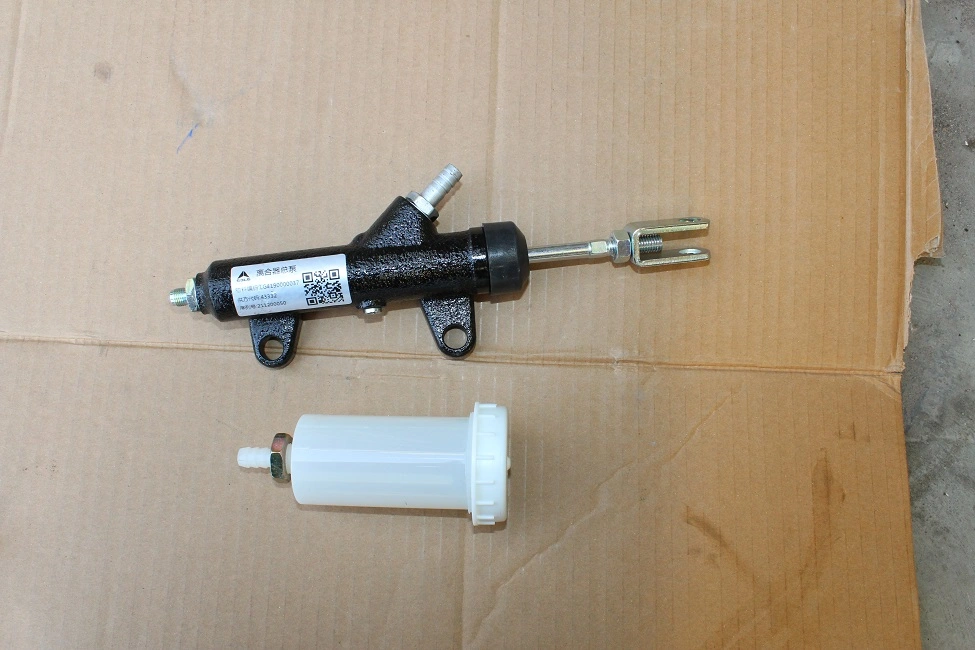

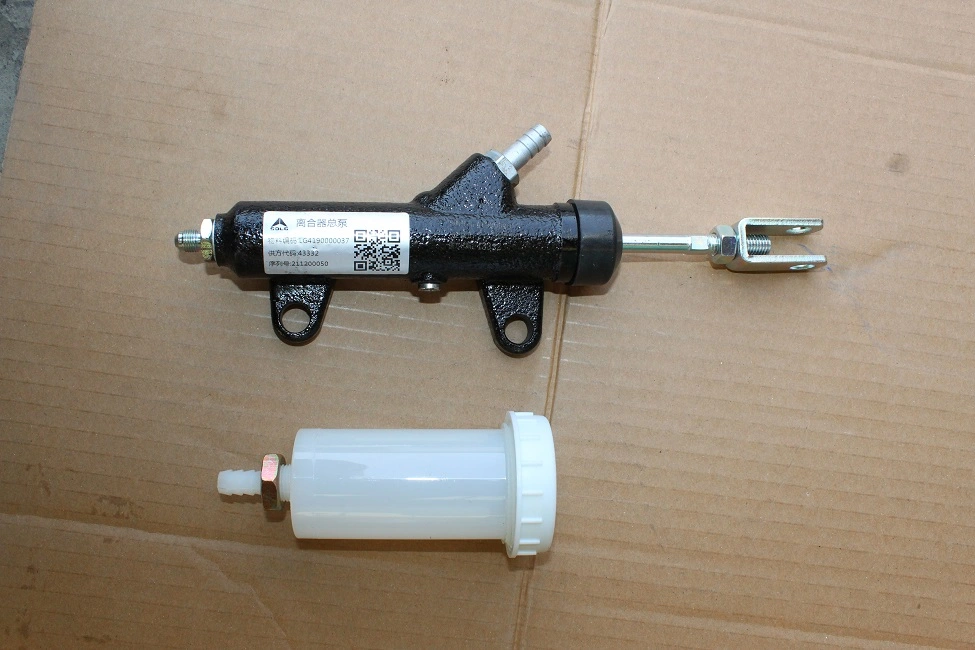

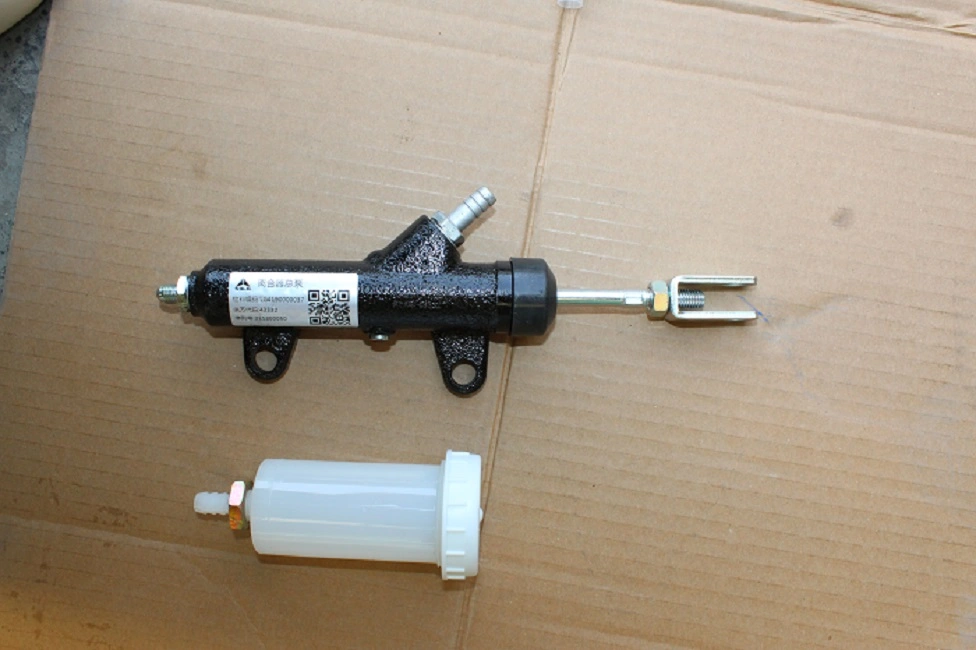

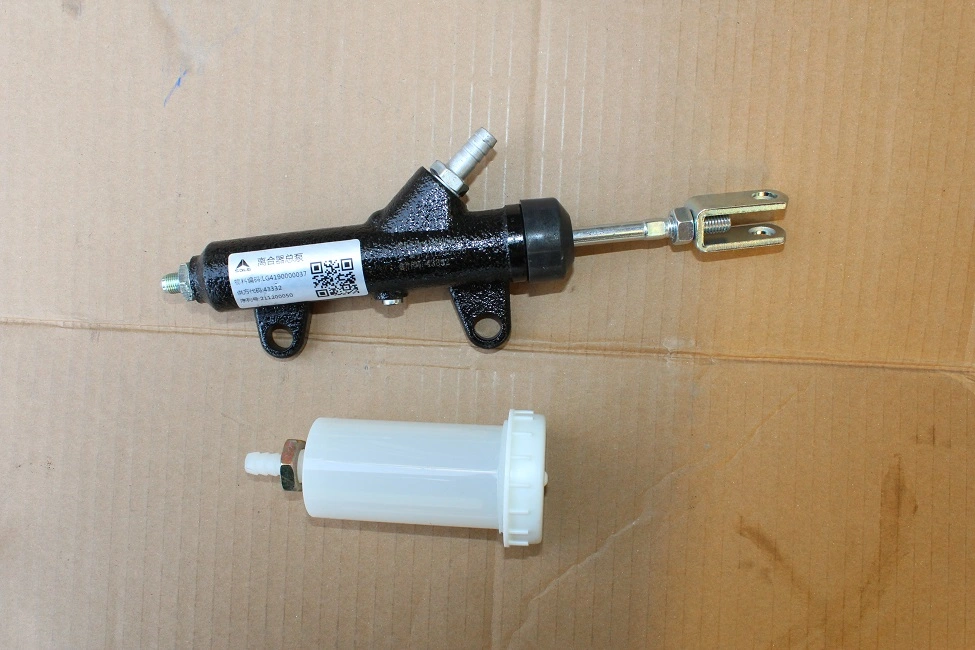

The clutch master pump refers to the part connected in the clutch pedal and connected with the clutch booster through the oil pipe. Its function is to collect the pedal stroke information and separate the clutch through the booster.
The central part of the piston of the clutch pump has a radial long round hole, and the limiting screw passes through the long round hole of the piston to prevent the piston from rotating. The inlet valve is loaded into the axial hole of the piston on the left side, and the inlet valve seat is inserted into the piston hole through the straight hole on the surface of the piston. When the clutch pedal is not stepped on, there is a gap between the push rod of the main pump and the piston of the main pump, and there is a small gap between the inlet valve and the piston because of the limit screw on the inlet valve. In this way, the oil storage Cylinder is communicated with the left cavity of the main pump through the pipe joint and the oil passage and the oil inlet valve. When the clutch pedal is pressed down, the piston moves to the left, and the intake valve moves to the right relative to the piston under the action of the return spring, eliminating the gap between the intake valve and the piston.
Specification
item value Condition New Applicable Wheel Loader Parts Showroom Location None Video outgoing-inspection Provided Machinery Test Report Provided Marketing Type Ordinary Product Place of Origin China Warranty 3 months Condition 100% New Part name Clutch master pump Part No 4190000037 Weight 5kg After Warranty Service Online support Local Service Location None Condition New
Company Profile
Established on December 2nd 2008, the business scope including ordinary freight (the period of validity will be subject to the license) : wholesale, retail: machinery and equipment and accessories, Auto Parts, motorcycles and accessories, hardware tools, electronic products, building materials, lubricating oil (barrel), rubber products, computer and consumables, office supplies, digital products, etc.
Shandong Tianfu International Trade Co., Ltd. was founded in 2001,We are engaged in chinese brand Wheel Loader Spare Parts wholesale and export business,We have own brand spare parts ,2,000 square meters of warehouse can ensure enough inventory,Products are exported to Europe, the Middle East, Central Asia, South Asia and other countries.
Spare parts of each system including:Power system,Torque Converter and Transmission system,Power train, Hydraulic System,Brake System,Sheet metal system,Cab and accessorie,Conditioner system,Electrical System,Oil product, etc.
Wheel Loader Multi-function Auxiliaries : Wood grabber, pipe grabber, cotton grabber, grass grabber, sweeper, marble fork, snow shovel, snow thrower, ditch opener, etc.
In addition, we are also engaged in parts of Engine .
High quality products,enough stock,19 years export experience,we can offer professional service and competitive prices for you .
Shandong Tianfu looking forward to cooperation with you !
FAQ
1. who are we? We are based in Shandong, China, start from 2019,sell to Africa(20.00%),Mid East(20.00%),Northern Europe(20.00%),Southeast Asia(10.00%),Eastern Asia(10.00%),Western Europe(10.00%),South Asia(10.00%). There are total about 11-50 people in our office. 2. how can we guarantee quality? Always a pre-production sample before mass production; Always final Inspection before shipment; 3.what can you buy from us? Loader Parts,Engine parts,loader torque converter,loader transmission,Torque converter transmission assembly 4. why should you buy from us not from other suppliers? Shandong Tianfu International Trade Co., Ltd was engaged in chinese brand wheel loader and engine spare parts wholesale and export business. High quality products,enough stock,rich export experience,we can offer professional service and competitive price. 5. what services can we provide? Accepted Delivery Terms: FOB,CFR,CIF,EXW； Nearest Port: Qingdao, Shanghai, Tianjin Transportation: By Sea ,By Air ,By courier, TNT , DHL, Fedex, UPS Etc.
