Model No.:ZL50GN CLG856 XG931 LG956
Status:New
Applicable Industry:Construction Works
Out-of-warranty Service:Video Technical Support
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets):None
Showroom Location (in Which Countries Are There Sample Rooms Overseas):None
Video Factory Inspection:Provided
Mechanical Test Report:Provided
Marketing Type:New Product 2020
Place Of Origin:China
Warranty Period:3 Months
Service System:Online Support
Quality:High Guarantee
Machinery Test Report:Provided
Application:Wheel Loader
Port:Tianjin, Qingdao, Shanghai, Ningbo, Guangzhou
Applicable Industries:Construction works
Warranty:3 months
After Warranty Service:Online support

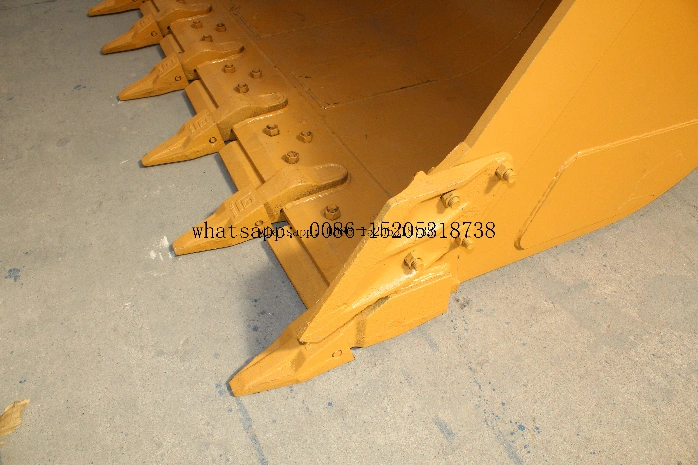

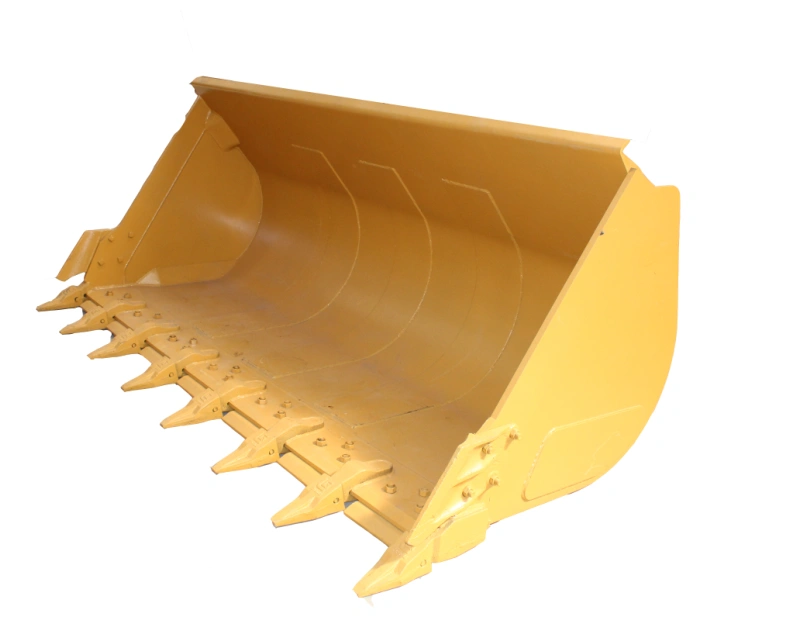

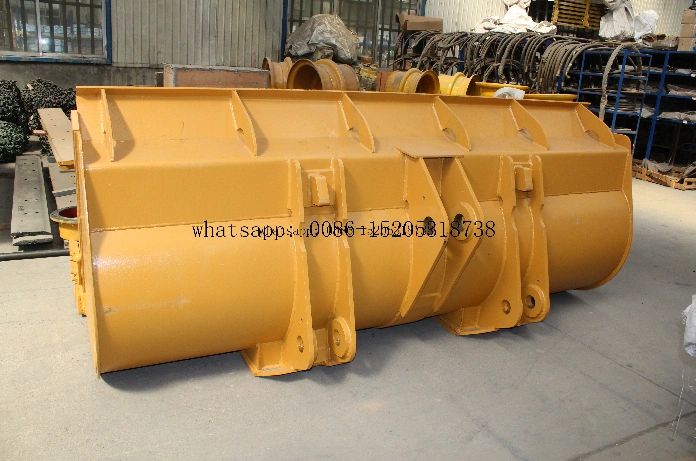

Part Name:bucket / rock bucket
Part Number:ZL50GN CLG856 XG931 LG956
Packaging:box
Transportation:Ocean,Land,Air,Express,Others
Supply Ability:5000
Port:Tianjin,Qingdao,Shanghai
Payment Type:T/T
Incoterm:FOB
Product Description
Wheel Loading Shovel is an earth-moving machine equipped with mechanisms to guide its working attachments. It has a loader mechanism in the front, which guides the shovel for loading materials. It is desired to guide this shovel so that it can dig by a certain amount into the ground, lift above ground level to dump on a truck. It also has to reach forward by a certain amount so that it can dump clear of the truck. They can be besides these kinematical challenges, it also has to have as much lifting and breakout force as possible. Loader mechanism is a complex mechanism with 11 linkages and two degrees of freedom.
A loader is a self-propelled machine, having front-mounted equipment primarily designed for loading operation (bucket use), which loads or excavates through forward motion of the machine. A loader work cycle normally comprises filling, elevating, transporting and discharging material.Main structure
Bucket refers to the bucket installed on the excavator, also known as the bucket. According to the working mode, it is divided into back bucket and front bucket. Generally, backhoe buckets are commonly used. Divided by material: standard bucket, reinforced bucket and rock bucket.

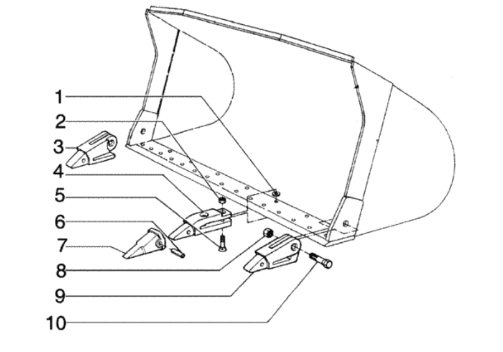

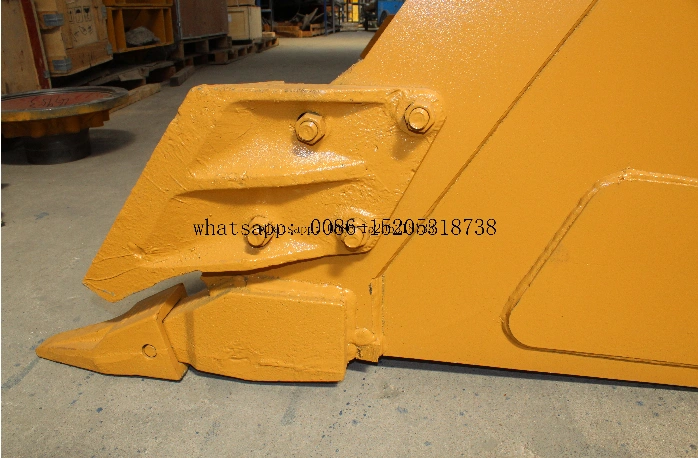

Bucket is a kind of structural product, consisting of tooth Seat plate, bottom plate, side plate, wall plate, ear plate, back plate, bucket ear plate, bucket ear cover, bucket Teeth , tooth seat, guard plate or bucket angle It is composed of other parts, therefore, welding is the most critical manufacturing process for the bucket. The welding quality directly affects the structural strength and service life of the bucket.
Bucket replacement
The bucket is connected to the stick and connecting rod through the stick pin and the connecting rod pin, To replace the bucket, actually first remove the stick pin and the Cylinder pin of the connecting rod bucket, remove the original bucket, and then use the stick pin and connecting rod pin together with the stick for other buckets or working devices.Connecting with the connecting rod is the process of installing the arm pin and the connecting rod pin.
The steps to replace the bucket are as follows: (1) Place the bucket on a flat ground. In the process of lowering the bucket, make the bucket just touch the ground to minimize the resistance when removing the pin.
(2) Remove the rocker pin and connecting rod pin. Remove the double nut that locks the bolts on the arm pin and link pin, then remove the arm pin and link pin, and then remove the bucket. During this process, please pay attention to the removed rocker pin and connecting rod pin not to be soiled by mud and sand, and do not damage the seal at both ends of the shaft sleeve. (3) Install the bucket or other working devices to be used. Change the position of the joystick so that the hole on the joystick is aligned with the hole on the bucket, and the hole on the connecting rod is aligned with the hole on the bucket, Then apply grease and install stick Pins and connecting rod pins. The installation process of the pin is reverse to the removal sequence. When installing the rocker pin, install an O-ring in the position shown in the figure below, insert the rocker pin, and then put the O-ring into the appropriate groove. When installing the connecting rod pin, first put the O-ring into the appropriate groove, and then insert the connecting rod pin. (4) Install the locking bolt and nut of each pin, and then apply grease on the pin Packing & Delivery
Before packaging, we generally evaluate the fragility of the goods and the value of the goods, and then select the appropriate inner packaging materials. Secondly, we consider that various situations may occur during transportation, and we have requirements for the compression, shock and water resistance of the outer packaging of the goods. About the shipping method, Cabin usually use sea shipping methods, and the port can be specified by the customers.
Certifications
Company Profile
Shandong Tianfu International Trade Co., Ltd. was founded in 2001,We are engaged in chinese brand Wheel Loader Spare Parts wholesale and export business,We have own brand spare parts ,2,000 square meters of warehouse can ensure enough inventory,Products are exported to Europe, the Middle East, Central Asia, South Asia and other countries. Spare parts of each system including:Power system,Torque Converter and Transmission system,Power train, Hydraulic System,Brake System,Sheet metal system,Cab and accessorie,Conditioner system,Electrical System,Oil product, etc. Wheel Loader Multi-function Auxiliaries : Wood grabber, pipe grabber, cotton grabber, grass grabber, sweeper, marble fork, snow shovel, snow thrower, ditch opener, etc. In addition, we are also engaged in parts of Engine . High quality products,enough stock,19 years export experience,we can offer professional service and competitive prices for you . Shandong Tianfu looking forward to cooperation with you !
FAQ
1. who are we? We are based in Shandong, China, start from 2019,sell to Africa(20.00%),Mid East(20.00%),Northern Europe(20.00%),Southeast Asia(10.00%),Eastern Asia(10.00%),Western Europe(10.00%),South Asia(10.00%). There are total about 11-50 people in our office. 2. how can we guarantee quality? Always a pre-production sample before mass production; Always final Inspection before shipment; 3.what can you buy from us? Loader Parts,Engine parts,loader torque converter,loader transmission,Torque converter transmission assembly 4. why should you buy from us not from other suppliers? Shandong Tianfu International Trade Co., Ltd was engaged in chinese brand wheel loader and engine spare parts wholesale and export business. High quality products,enough stock,rich export experience,we can offer professional service and competitive price. 5. what services can we provide? Accepted Delivery Terms: FOB,CFR,CIF,EXW； Accepted Payment Currency:null; Accepted Payment Type: null; Language Spoken:null
