Model No.:3-5 ton loader
Brand:HL
Certification:ISO
Condition:New
Rated Load:3-6t
Transmission:Hydraulic
Load and Unload Mode:Front Discharge
Walking Mode:Wheeled
Type:Medium-sized Loader
Packaging:box
Productivity:10000
Transportation:Ocean,Land,Air
Place of Origin:CHINA
Supply Ability:1000 Pc per day
Certificate:ISO
Port:SHANGHAI,GUANGZHOU,QINGDAO
Payment Type:L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm:FOB,CFR,CIF,EXW,FCA,CPT,CIP

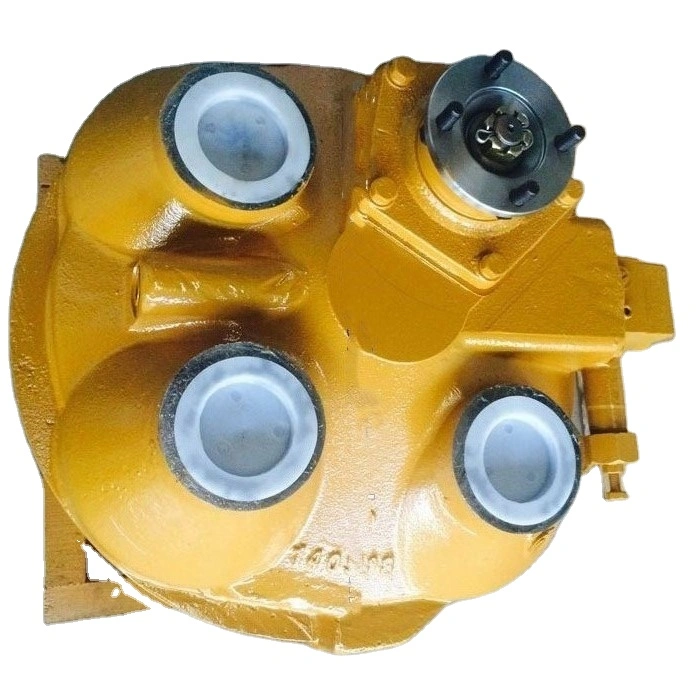

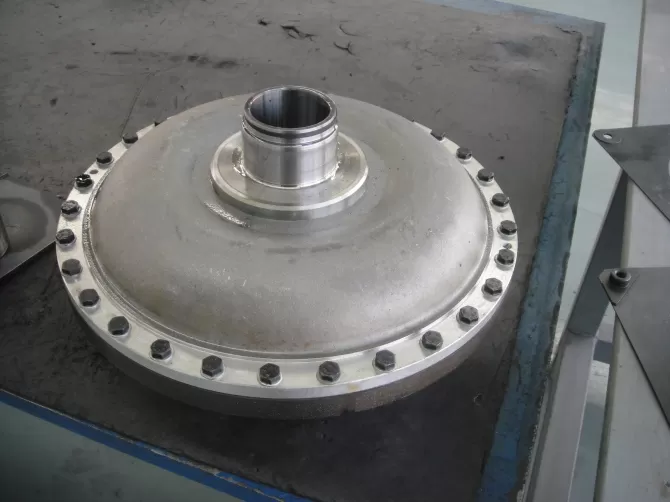

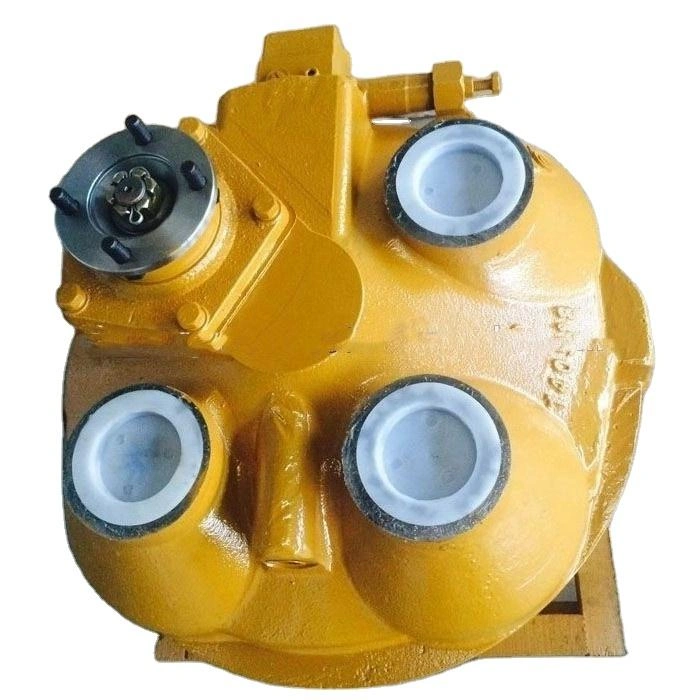

The hydraulic Torque Converter is also called "hydraulic torque converter", "turbine torque converter", and "dynamic hydraulic torque converter". A kind of hydraulic transmission components. It is composed of pump wheel, turbine and guide wheel. The pump wheel is connected with the driving shaft, and the mechanical energy input by the driving shaft can be converted into the kinetic energy and pressure head of the liquid by the action of centrifugal force for the turbine to perform functions. The turbine is connected to the driven shaft, which can output the kinetic energy of the liquid and the energy contained in the pressure head from the driven shaft.
The hydraulic torque converter has 3 working wheels, namely pump wheel, turbine and guide wheel. The structure of the pump wheel and the turbine wheel is basically the same as that of the fluid coupling; the guide wheel is located between the pump wheel and the turbine wheel and maintains a certain axial gap with the pump wheel and the turbine wheel, and is fixed to the transmission housing through the guide wheel fixing sleeve. When the Engine is running, the housing of the hydraulic torque converter and the pump wheel rotate with it. The hydraulic oil in the pump wheel rushes to the turbine from the outer edge of the pump wheel blade under the action of centrifugal force. And flow along the turbine blades to the guide wheel, and then flow back to the inner edge of the pump wheel blades through the guide wheel blades to form a circulating liquid flow. The role of the guide wheel is to change the output torque on the turbine. Since the hydraulic oil flowing from the lower edge of the turbine blades to the guide wheel still has a considerable impact force, as long as the blades of the pump, turbine and guide wheel are designed into a certain shape and angle, the above impact force can be used to increase the output of the turbine. Torque.
