Model No.:SDLG
Brand:XCMG
Warranty:3 Month
Certification:ISO
Condition:New
Rated Load:3-6t
Transmission:Hydraulic - Mechanical
Load and Unload Mode:Front Discharge
Walking Mode:Wheeled
Type:Medium-sized Loader
Packaging:box
Productivity:10000
Transportation:Ocean,Land,Air
Place of Origin:CHINA
Supply Ability:1000 Pc per day
Certificate:ISO
Port:Shanghai,Qingdao,Guangzhou
Payment Type:L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm:FOB,CFR,CIF,EXW,FCA,CPT,CIP

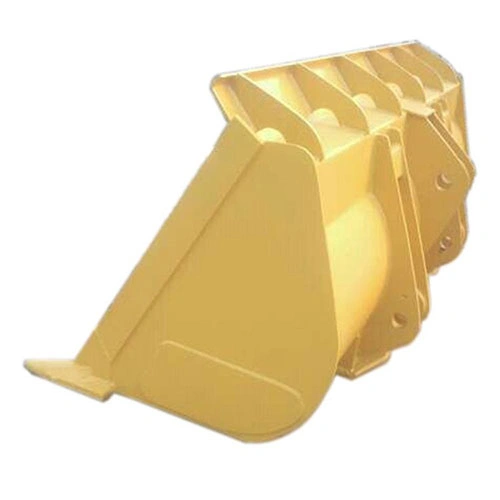

The loader bucket is mainly for loading. The loader bucket is mainly composed of four parts: the front bucket, the rear bucket, the opening Cylinder and the hinge pin. The following introduces the main purpose of the loader bucket: 1. Loading operation The piston rod of the opening cylinder is extended to the longest position, the front bucket is retracted to form a closed bucket, and the loading operation is completed. There are two unloading methods during operation: the first is to lift to the highest position like a normal bucket, and the bucket is turned over to discharge; the second is to lift to the highest position, retract the opening cylinder, and open the front bucket. , Falling between the back buckets, tilt the back bucket forward slightly to make the material unloading clean. The height of the second unloading method is nearly 1m higher than that of the first one, but the unloading distance is reduced, and it can only be adapted to special occasions with high unloading. 2. Dozing work The piston rod of the opening cylinder is retracted to a certain position, the front bucket is opened to the required angle and leaves the ground, the rear bucket is grounded, the cutting angle of the rear bucket dozer is adjusted, the main Engine moves forward, and the rear bucket completes the dozing operation.
3. Scrape operation Retract the piston rod of the opening cylinder to a certain position, open the front bucket to the required angle, adjust the height and inclination angle of the rear bucket to ground the front bucket; adjust the angle of the rear bucket bulldozer to make it leave the ground. The front bucket completes the leveling operation.
4. Clamping operation The piston rod of the opening cylinder is moved to recover the opened front bucket, and the front and rear buckets clamp the object to complete the clamping operation. The sawtooth-shaped notches on the side plate of the front bucket and the bottom plate of the rear bucket can effectively clamp round logs; the rear edge of the front bucket bottom plate and the back bucket bottom plate can also be used to clamp larger stones.
