Model No.:12c0001
Brand:LIUGONG
Warranty:3 Month
Certification:ISO
Condition:New
Rated Load:3-6t
Transmission:Hydraulic - Mechanical
Load and Unload Mode:Front Discharge
Walking Mode:Wheeled
Type:Medium-sized Loader
Packaging:box
Productivity:10000
Transportation:Ocean,Land,Air
Place of Origin:CHINA
Supply Ability:1000 Pc per day
Certificate:ISO
Port:Shanghai,Qingdao,Guangzhou
Payment Type:L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm:FOB,CFR,CIF,EXW,FCA,CPT,CIP

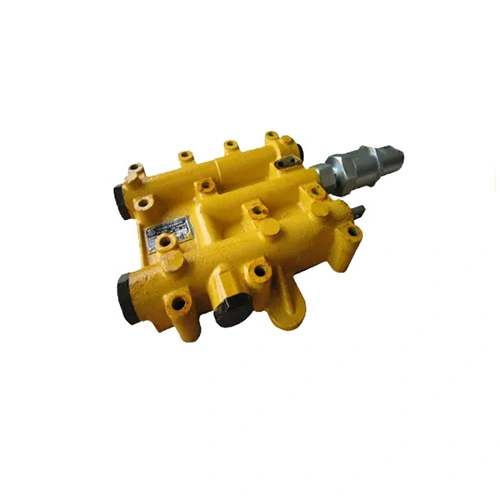

How to adjust the pressure of the loader variable speed control valve? BF25 type variable speed control valve is a valve commonly used when 5-ton loaders are equipped with planetary gearboxes in the domestic market. This kind of valve has a special pressure regulating spring, which is installed in the accumulator cavity on the upper part of the spool valve rod cavity. Remove the plug bolt of the accumulator and take out the accumulator piston. You can see that there is a thick and short inside. One slender spring, one slender one. Pull out the spring and look into the hole. You can see the pressure regulating valve core. One end of the pressure regulating spring is on the pressure regulating valve core, and the other end is of course on the accumulator piston, which can be compressed by the piston. The piston chamber of the old-fashioned valve is equipped with a pressure regulating ring that limits the movement of the piston. By removing one pressure regulating ring, the piston can compress the spring more and the pressure can be increased. The new type does not have a pressure regulating ring, but the mandrel head of the pressure regulating valve core protrudes more, you can put on one or several suitable washers, and also achieve the purpose of increasing the compression of the spring, and increase the pressure, and vice versa The same is true.
Product Categories : Home > Products > Transmission and converter System > Transmission Box
